OEM Aerogel Insulation Blanket for Thermal Insulation | China Suppliers and Factory
Key Technical Performance
Advantages
- Low dust aerogel
- Extremely low thermal conductivity, high durability and energy saving effect

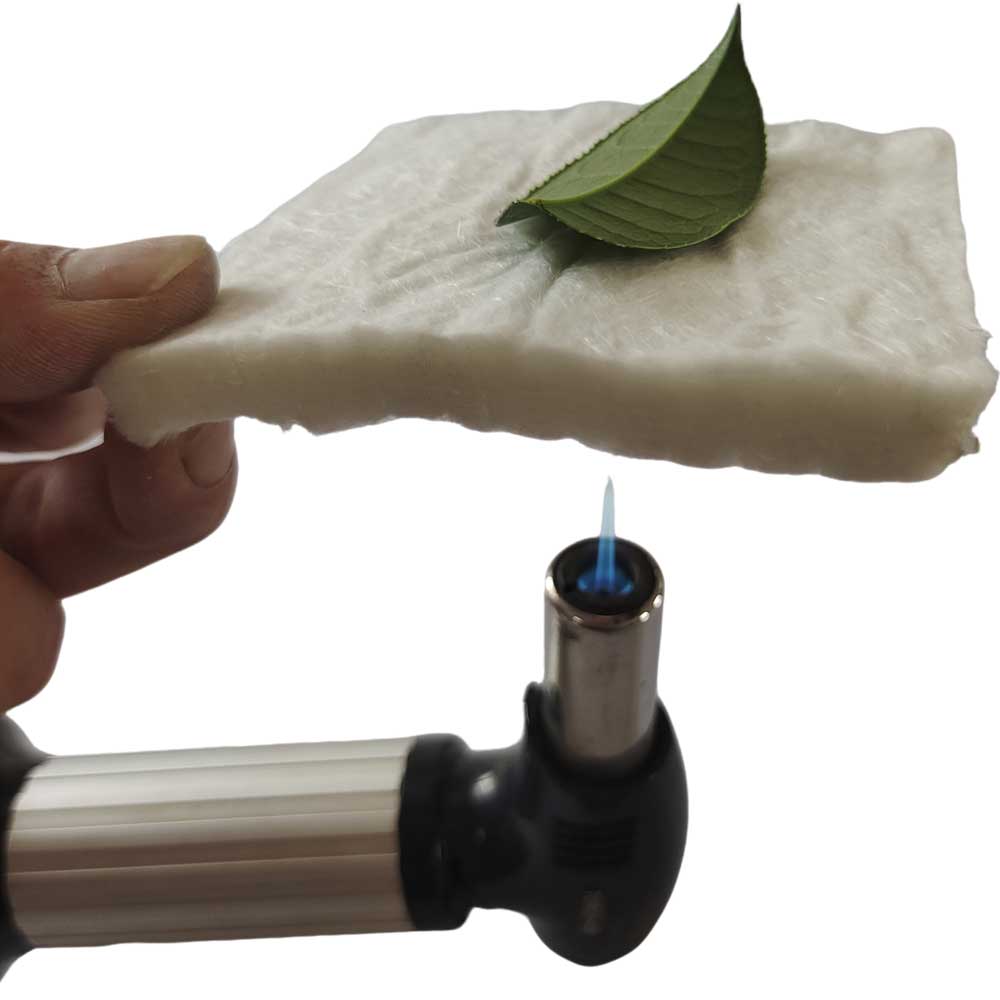

- Fire resistance in grade A
- Superior resistance to breakage and physical abuse during shipping, fabrication and installation.
- Fast, easy installation
- Light weight, durable design allows for pre-insulation, reduces joint and keeps thermal insulation performance well
- Corrosion inhibition
- Safe and environmentally friendly
Technical Parameters
| Nominal Thickness | 3mm, 5mm, 10mm |
| Density | 200 kg/m3 |
| Suggested Temperature | -165℃ - 650℃ |
| Fire Rating | Class A |
| Thermal Conductivity | ≤0.021W/mK |
| Width/Length | 1500mm / 28m, 36m, 42m long |

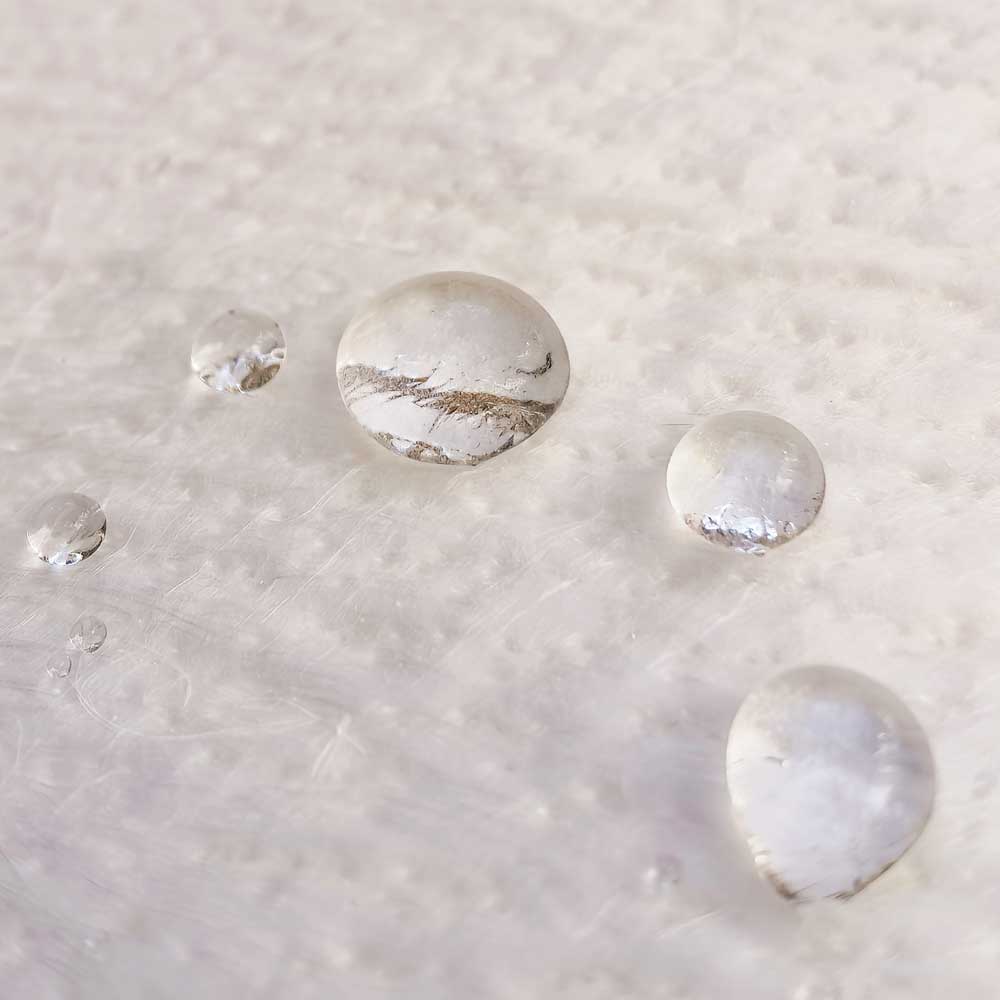

| Hydrophobicity | ≥98% |
| Flexibility | Flexible |
Note: Roll fabrication for customized dimensions is available.
Building Applications
Wall Insulation
Enhances thermal resistance in both interior and exterior walls, preventing heat loss and moisture issues.
Retrofitting
An excellent solution for energy-efficient renovations of existing buildings, including historic structures, due to its thin profile and ability to maintain architectural features.
Roof Insulation
Reduces heat loss through roof cavities, maintaining consistent indoor temperatures.
Window and Door Frames
Minimizes thermal bridging, improving overall insulation efficiency.
Floors
Provides efficient thermal resistance under floors without interfering with door fittings.
Considerations
Industrial Applications
Oil, Gas, & Refining
Used for insulating pipelines and vessels in high-temperature environments, reducing heat loss and energy consumption.
Liquefied Natural Gas (LNG)
Provides stable performance and flexibility in cryogenic and dual-temperature applications, withstanding extreme thermal conditions.
Power Generation
Extends to insulating components in power systems, reducing energy loss and improving efficiency.
Aerospace
Utilized in spacecraft and satellites for its lightweight, ultra-thin, and highly efficient insulation properties in harsh conditions.
Automotive
Applied in engine compartments and exhaust systems to reduce vehicle weight and improve fuel efficiency.
Packaging
Samples are always available with 300mm*300mm for standard thickness.
Packing In Roll
Roll Warehouse With Fast Delivery

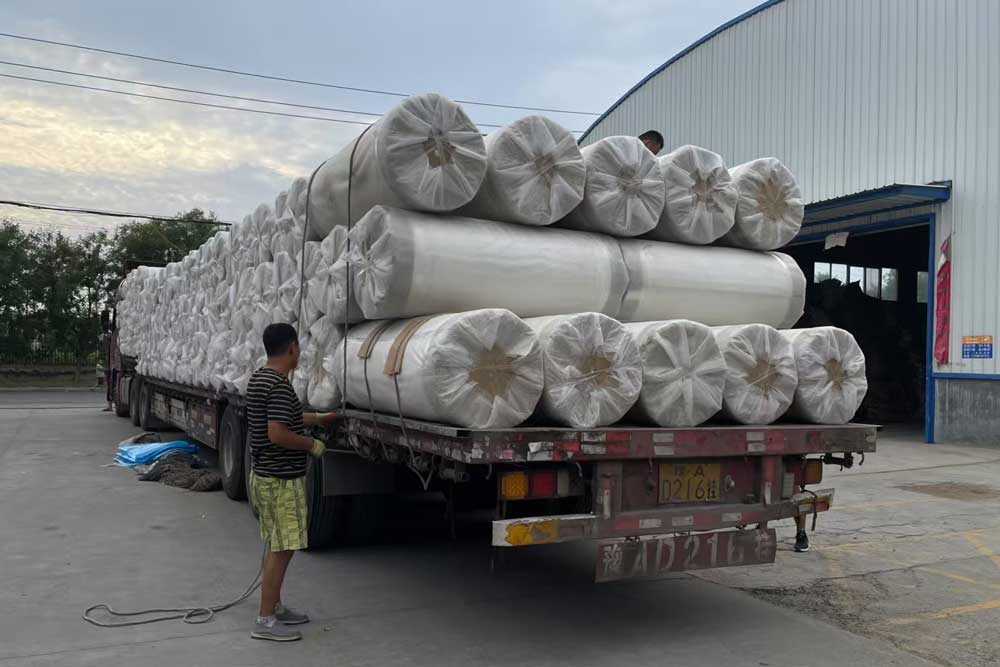

Loading In Truck
Frequently Asked Questions
What are the main advantages of this aerogel insulation?
It features low dust, extremely low thermal conductivity, Grade A fire resistance, high durability, fast and easy installation, light weight, corrosion inhibition, and is safe and environmentally friendly.
What is the thermal conductivity and fire rating of this product?
The aerogel insulation has an extremely low thermal conductivity of ≤0.021W/mK and holds a Class A fire rating, ensuring excellent energy efficiency and safety.
What sizes and thicknesses are available?
It comes in nominal thicknesses of 3mm, 5mm, and 10mm. The standard roll width is 1500mm, with lengths available in 28m, 36m, and 42m. Customized roll dimensions can also be fabricated.
What temperature range can the insulation withstand?
The suggested operating temperature range is from -165℃ up to 650℃, making it highly versatile for both cryogenic and high-temperature environments.
Where is this aerogel insulation typically applied?
It is used in building applications (walls, roofs, floors, and retrofitting) and various industrial applications including Oil & Gas refining, Liquefied Natural Gas (LNG), Power Generation, Aerospace, and Automotive industries.
Are samples available for evaluation?
Yes, samples are always available in a standard size of 300mm*300mm for standard thicknesses to help evaluate the performance.
