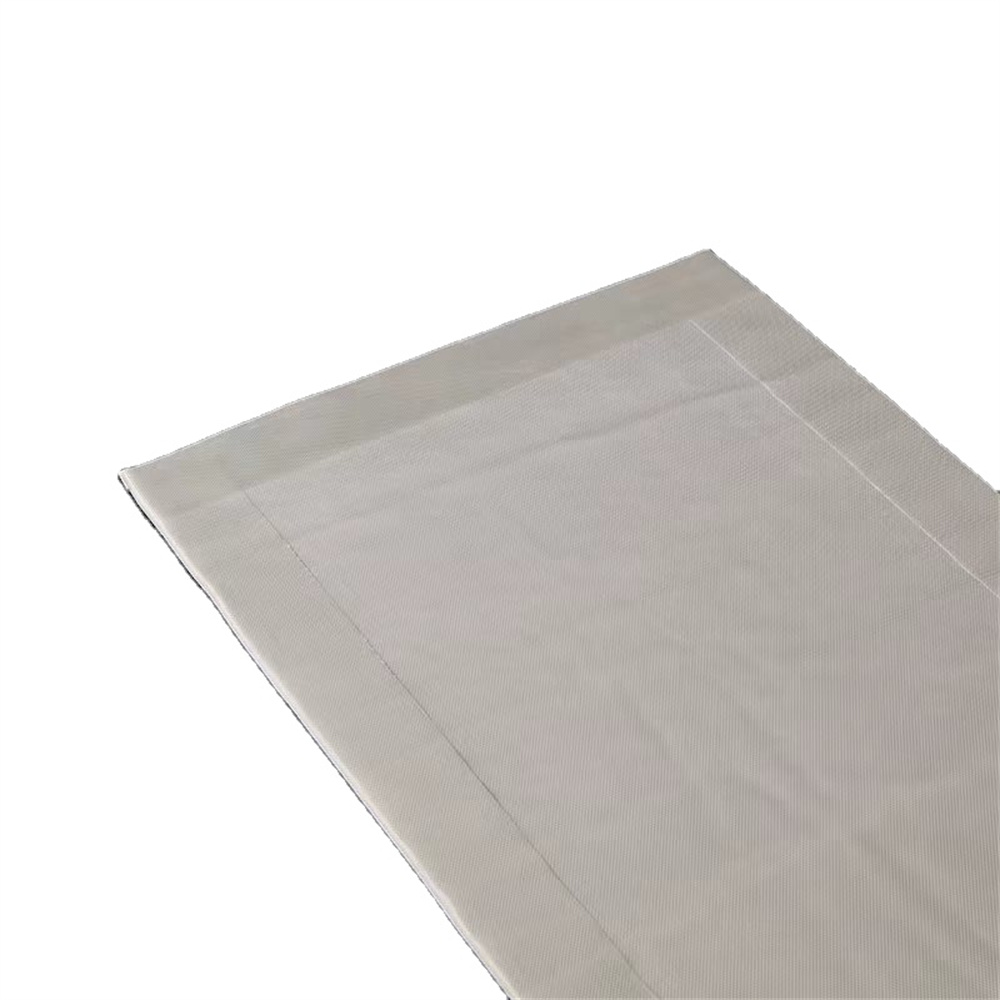

AEROGEL Insulation Panel with Glass Fiber04.jpg
AEROGEL Insulation Panel with Glass Fiber05.jpg

High-Temp AEROGEL Insulation Panel | JTG Series | China Suppliers & Factory for Superior Thermal Performance

Introducing the JTG Series Aerogel Insulation Panel, expertly crafted by a leading factory in China. Encased in a protective glass fabric envelope, our panels minimize surface dust, making handling and installation hassle-free. Available in customizable dimensions with options for two-side or four-side coverage, this product is designed for optimal thermal performance in both industrial and construction applications. Choose us as your trusted suppliers for high-quality aerogel insulation solutions that enhance energy efficiency and sustainability
    Contact us
    Product Details

    The JTG Series represents a premium class of aerogel insulation panels engineered for demanding environments. By encapsulating low-dust aerogel within a durable glass fabric outer envelope, this product achieves an optimal balance of superior thermal performance, enhanced durability, and simplified installation. The innovative design minimizes fiber release, making it cleaner and safer to handle. Customizable in coverage and dimensions, the JTG Series provides a versatile and high-efficiency insulation solution across multiple industries.

    Key Advantages

    Clean & Efficient Handling

    The glass fabric envelope greatly reduces surface dust, facilitating a cleaner work environment and easier, faster installation.

    Unmatched Thermal Performance

    Possesses extremely low thermal conductivity, ensuring maximum energy savings, high durability, and consistent long-term performance.

    Grade A Fire Safety

    Offers exceptional fire resistance, meeting the highest safety standards for use in critical applications.

    Superior Physical Durability

    Designed to resist breakage and withstand physical abuse during shipping, fabrication, and installation, ensuring product integrity.

    Lightweight & Robust

    The lightweight design allows for pre-insulation, reduces thermal bridging at joints, and maintains excellent insulation performance without adding significant weight.

    Corrosion Inhibition & Environmental Safety

    Helps prevent corrosion on protected surfaces and is made from safe, environmentally friendly materials.

    Technical Parameters

    Items Parameters
    Part No. JTG
    Thickness 3/6/10 mm, Customizable
    Width 1400/1500 mm, Customizable
    Density 200±20 kg/m3
    Temperature Endurance (-200)-350 ℃
    Thermal Conductivity (25 ℃) 0.021 W/m.K (25 ℃)
    Hydrophobicity >99%

    Primary Applications

    Industrial Insulation

    Ideal for high-temperature equipment, pipelines, and vessels in facilities such as OIL REFINERIES and POWER PLANTS.

    Construction & Building Insulation

    Provides high-performance thermal insulation for walls, roofs, and other building envelope components.

    Energy Storage Safety

    Serves as a critical fire-resistance isolation barrier in ENERGY STORAGE CONTAINERS, enhancing system safety.

    High-Temperature Process Equipment

    Trusted for insulating equipment operating at extreme temperatures across various manufacturing and process industries.

    For more question, please do not hesitate to contact.

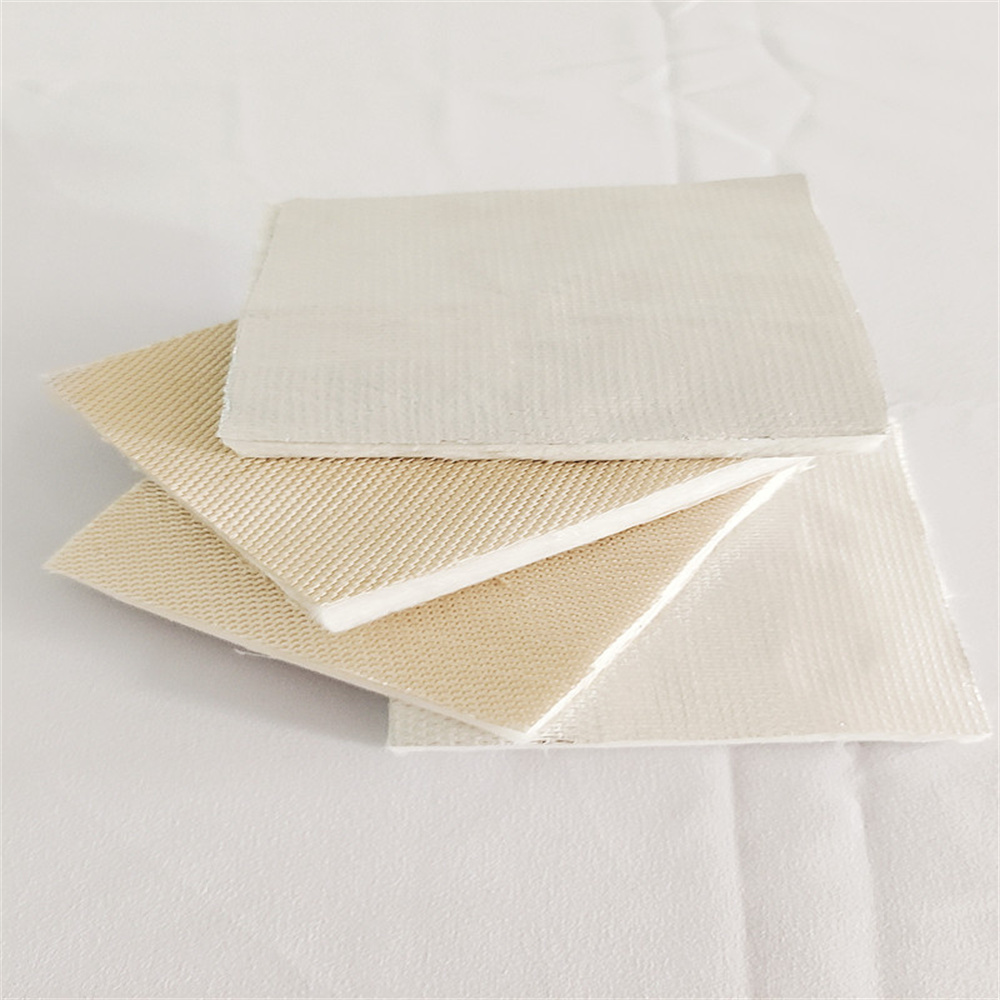

    AEROGEL Insulation Panel with Glass Fiber05
    AEROGEL Insulation Panel with Glass Fiber02

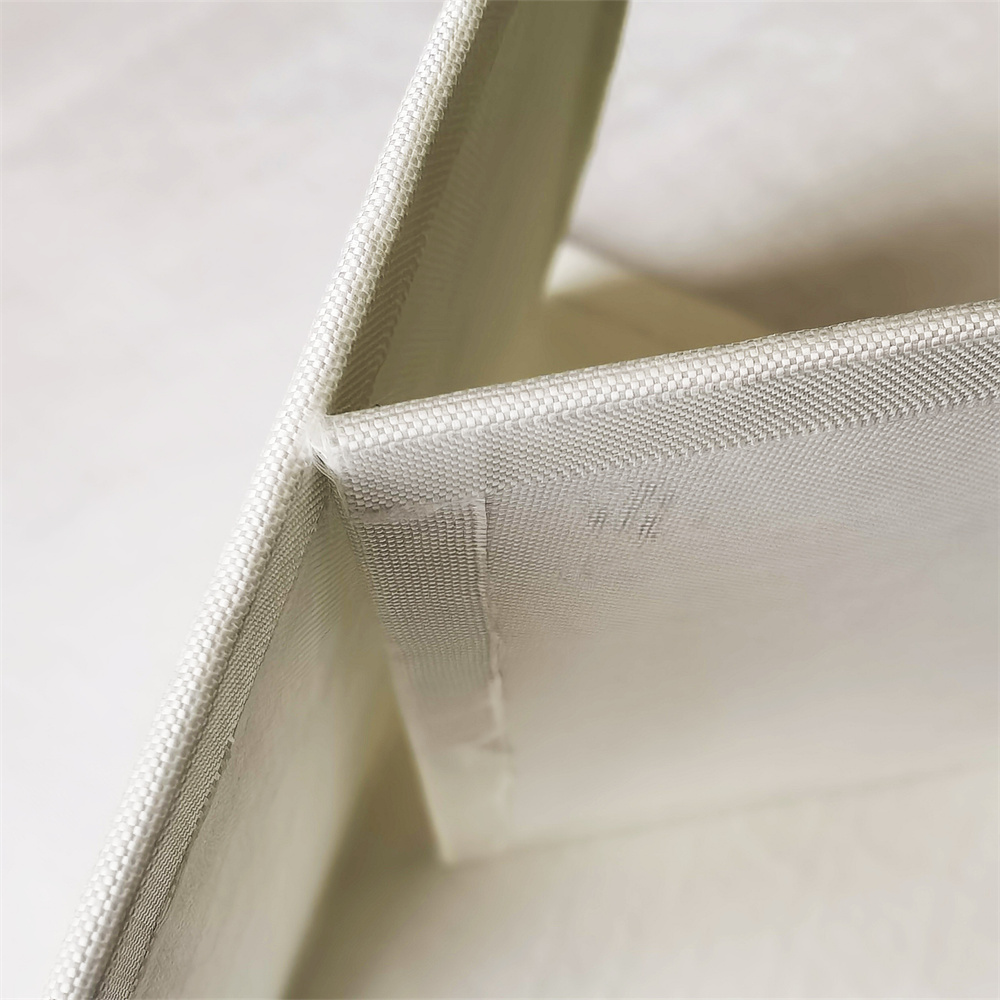

    AEROGEL Insulation Panel with Glass Fiber03

    Frequently Asked Questions

    What makes the JTG Series aerogel panels cleaner to handle?
    The JTG Series encapsulates the low-dust aerogel core inside a durable glass fabric outer envelope. This design significantly minimizes fiber and dust release, ensuring a cleaner, safer handling and installation process.
    What is the temperature range and thermal conductivity of these panels?
    The JTG Series has a temperature endurance range of -200 ℃ to 350 ℃. It features an extremely low thermal conductivity of 0.021 W/m.K at 25 ℃, offering superior insulation performance.
    Can the JTG Series panels be customized?
    Yes. While standard thicknesses are 3mm, 6mm, and 10mm, and standard widths are 1400mm and 1500mm, both dimensions and overall coverage can be fully customized to meet specific application requirements.
    Are these aerogel insulation panels fire-resistant?
    Yes, the JTG Series offers Grade A fire safety. It provides exceptional fire resistance and meets the highest safety standards, making it suitable for critical applications including energy storage containers.
    How does the product perform in terms of moisture resistance and durability?
    The JTG Series features high hydrophobicity (>99%), which helps prevent corrosion on protected surfaces. It is physically robust, designed to resist breakage during shipping, fabrication, and installation.
