VIP Panel
Fumed Silica VIP Vacuum Insulation Panel Class A Fireproof Low Thermal Conductivity
Product Introduction

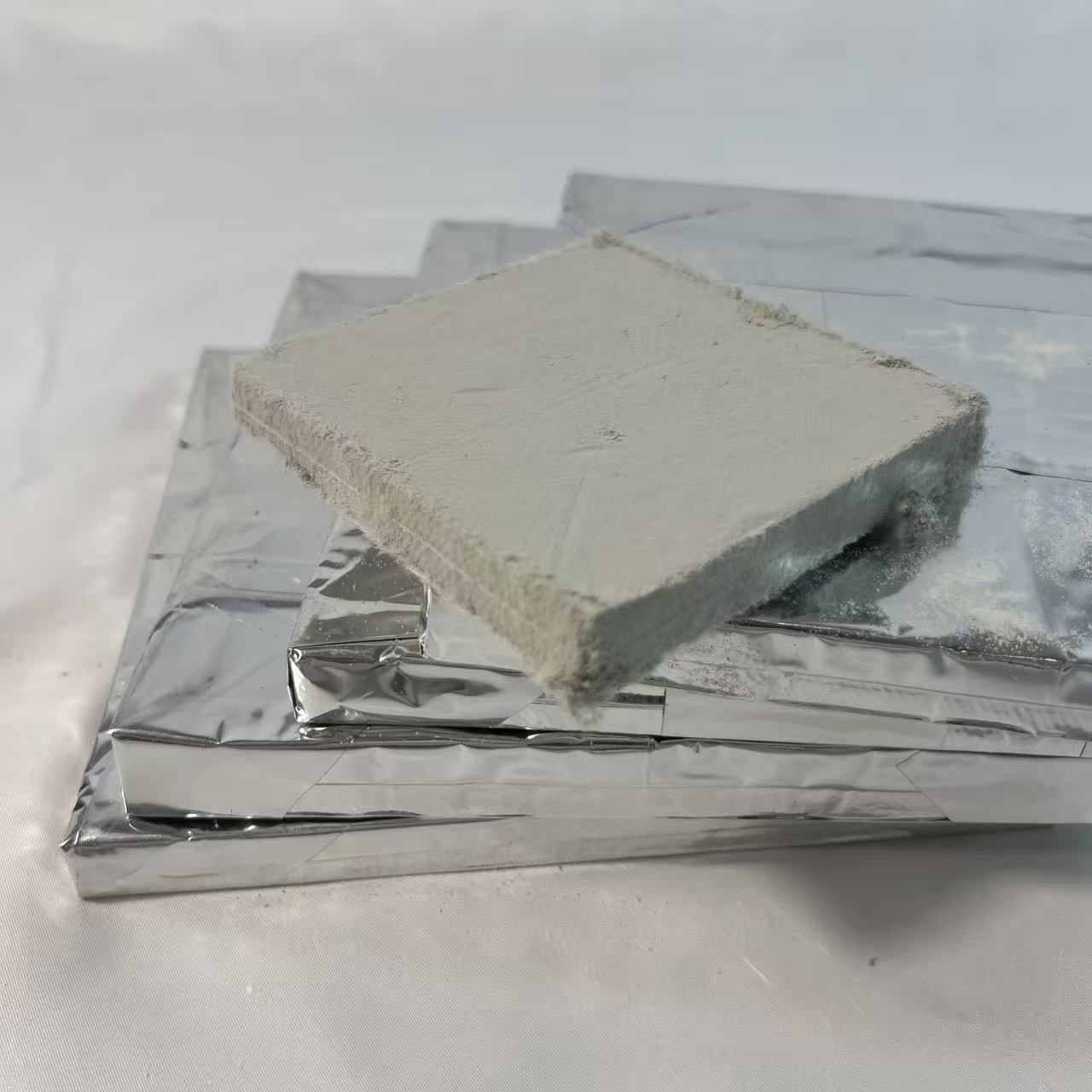

Vacuum insulation panel (VIP) is rigid board thermal insulation material with fumed silica as core material. VIP belongs to top-tier high-efficiency thermal insulation material globally. Its thermal insulation capacity is 5~8 times higher than traditional insulation materials like polyurethane. The product features stable vacuum structure, long service life, and supports regular rectangular & special irregular customized shapes. Widely used in cold storage, home appliances, cold chain transportation, building insulation and industrial constant temperature equipment.
Core Advantages
- Ultra-high thermal insulation efficiency: Insulation performance is 5-8 times superior to conventional polyurethane insulation, thinner boards achieve same heat preservation effect, save installation space.
- Space expansion: Applying VIP panels on refrigerators, freezers and cold warehouses can increase internal usable volume by 20%-30%.
- Long service life: Stable vacuum structure ensures service life up to 50 years, long-term stable insulation without attenuation.
- Excellent fire safety: DIN ISO4102 Class A fire resistance, fully meet fire codes of construction, cold chain and home appliance industries.
- Stable appearance: Smooth panel surface & neat edges, flat and easy for lamination and construction.
- Recyclable & eco-friendly: Raw materials can be recycled; SGS RoHS certified non-hazardous product. Fibers are non-respirable, compliant with WHO health standards.
- Shock-resistant & durable: Resist daily physical collision, stable structure, not easy to damage during transportation and installation.
Technical Parameters
| Core material | Fumed Silica |
| Thickness | 5~50mm |
| Standard Size | 1200mm×600mm / 1000mm×600mm, customizable |
| Shape | Rectangle & special custom shapes |
| Density | 180±10kg/m³ |
| Thermal Conductivity (1mbar pressure) | ≤5mW/(m·K) |
| Insulation Property | 5-8 times better than PU material |
| Fire Grade (DIN ISO 4102) | Class A |
| Color | Grey |
| Electrical Resistance | High |
Application Scenarios
- Household appliances: Refrigerators, freezers, wine coolers, water dispensers, kitchen constant-temperature equipment
- Cold storage & logistics: Cold room, refrigerated truck, cold chain container, medical low-temperature transportation boxes
- Construction industry: Exterior wall heat preservation, prefabricated building thermal insulation, passive house energy-saving insulation
- Industrial equipment: Battery thermal management, constant-temperature machinery, laboratory low-temperature instruments
- Other customized low/constant temperature insulation projects

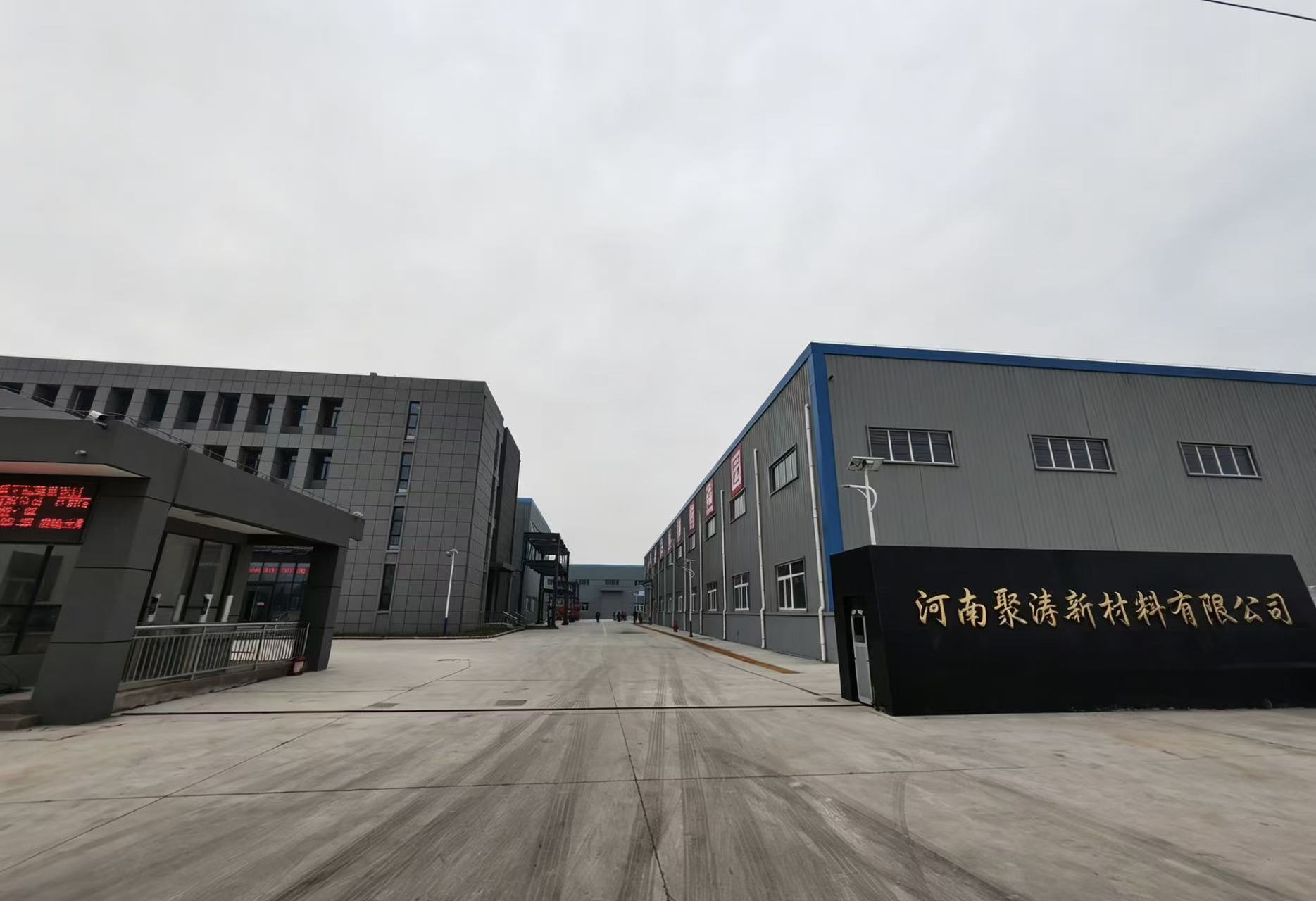

Company Profile
Welcome to Henan Jutao New Material Co., Ltd. We are a mobile business- you will find us wherever and whenever you need us. We have beenworking for 10 years on building insulation system.
We are mainly engaged in all kinds of building fireproof and heat insulationmaterials, Microporous insulation felt, vacuum insulation panel, automotiveinsulation materials, ceramic fiber material, STP building panel, is acollection of research and development, production, sales in one of theprofessional manufacturers.
