China Aerogel Insulation Blanket - Advanced Thermal Insulation from Trusted Suppliers and Factory

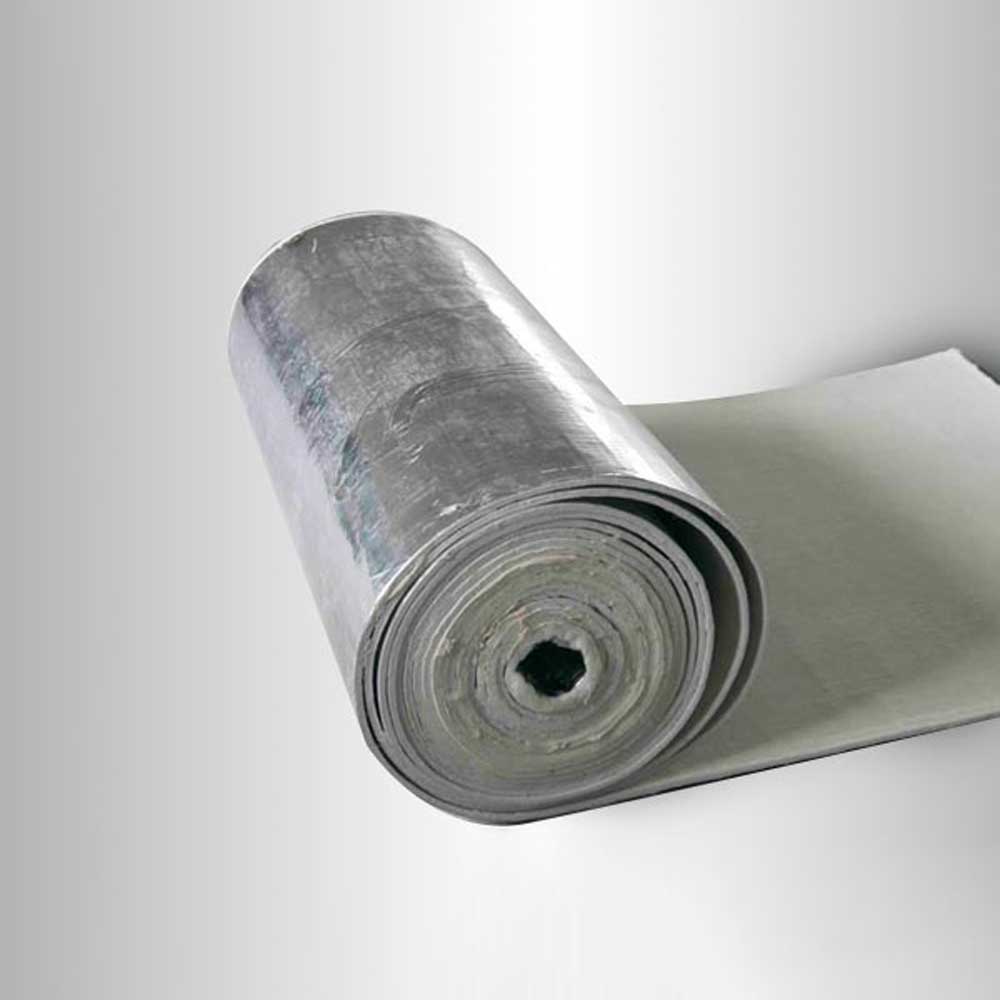

Key Technical Performance—JT20
The JT20 Aerogel Insulation Roll is engineered to deliver superior thermal protection in demanding environments. It is available in standard thicknesses of 5 mm, 6 mm, and 10 mm, with full customization supported to meet specific project requirements.
Designed for industrial applications—including the oil and gas sector and LNG insulation systems—the JT20 roll operates reliably across a broad temperature range, from -200°C to +200°C. Whether in pipelines, storage tanks, or cryogenic equipment, it provides consistent energy efficiency and safety under extreme conditions.
Low dust aerogel
Extremely low thermal conductivity, high durability and energy saving effect
Fire resistance in grade A
Superior resistance to breakage and physical abuse during shipping, fabrication and installation.
Fast, easy installation
Light weight, durable design allows for pre-insulation, reduces joint and keeps thermal insulation performance well
Corrosion inhibition
Safe and environmentally friendly
Technical Parameters
| Nominal Thickness | 5mm, 6mm, 10mm |
| Density | 170 kg/m3 |
| Suggested Temperature | -200°C to 200°C |
| Fire Rating | Class A |
| Thermal Conductivity (@25°C) | ≤0.017 W/mK |
| Width/ Length | 1500mm / 30m, 42m long |
| Hydrophobicity | ≥98% |
| Flexibility | Flexible |
Note: Roll fabrication for customized dimensions is available.
Applications
The product can significantly reduce cold loss and BOG (flash steam) loss, and is suitable for:
Cryogenic pipeline equipment, medium and low temperature pipelines, cold air fans/exhaust pipes, etc., such as LNG storage and transportation, liquid nitrogen and liquid oxygen storage and transportation equipment or transportation pipelines.
Packaging
Samples are always available with 300mm*300mm for standard thickness.

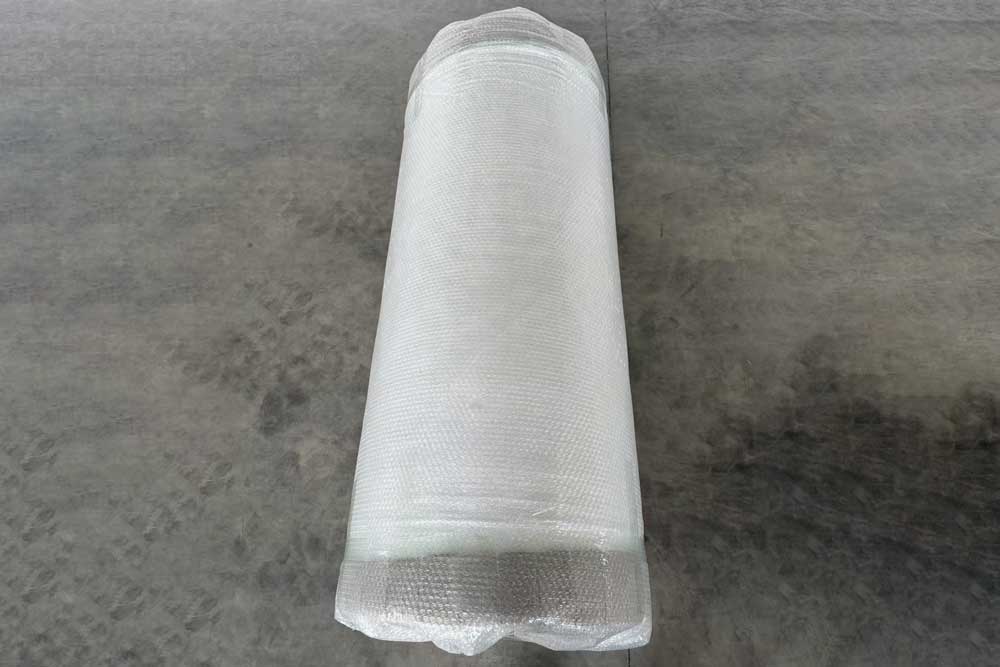

Packing In Roll

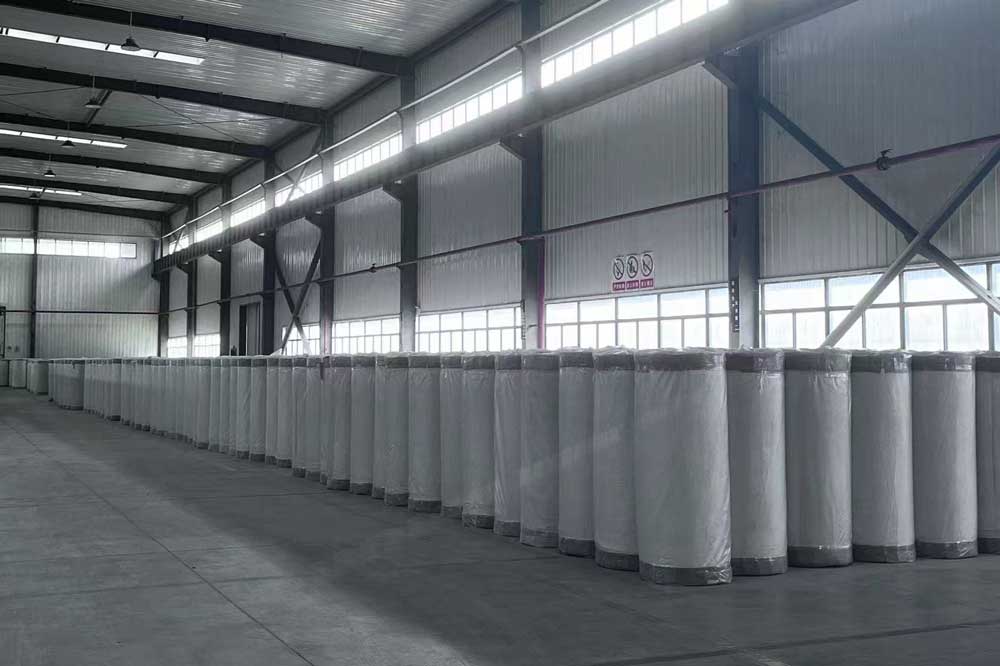

Roll Warehouse With Fast Delivery

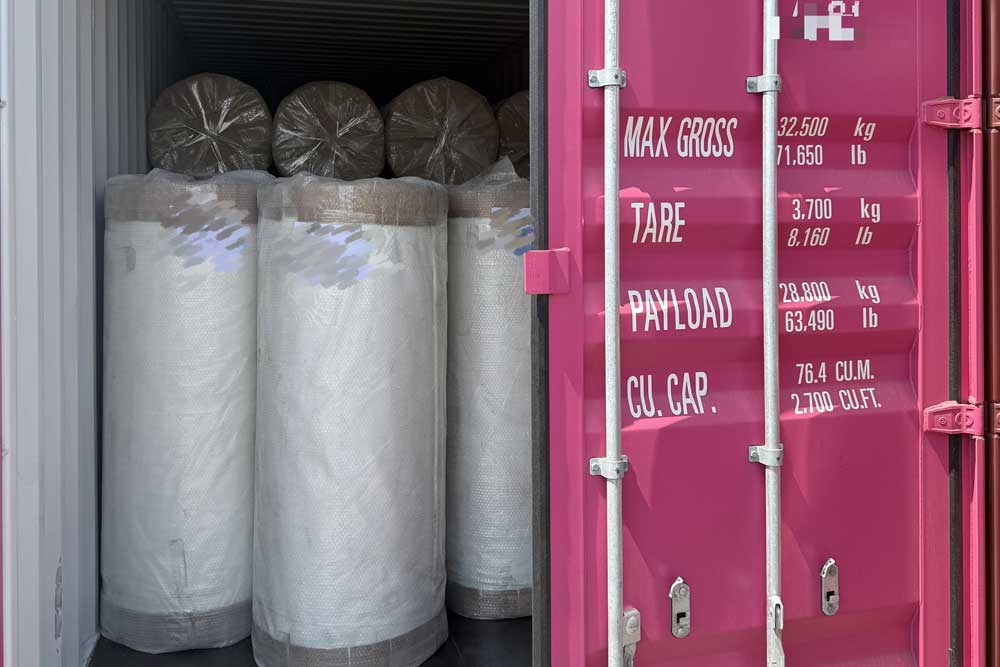

Loading In Containers
Frequently Asked Questions
What is the temperature range of the JT20 Aerogel Insulation Roll?
The JT20 Aerogel Insulation Roll operates reliably across a broad temperature range, from -200°C to +200°C, making it suitable for both cryogenic and medium-temperature industrial applications.
What thicknesses are available for the JT20 Aerogel Roll?
The roll is available in standard thicknesses of 5 mm, 6 mm, and 10 mm. Custom dimensions and roll fabrication are also available to meet specific project requirements.
What is the fire rating of the JT20 insulation roll?
The JT20 Aerogel Insulation Roll has a Class A fire rating, providing superior fire resistance and safety in demanding environments.
What are the primary applications of this aerogel insulation?
It is ideal for reducing cold loss and BOG (flash steam) loss in cryogenic pipeline equipment, medium and low temperature pipelines, cold air fans/exhaust pipes, LNG storage/transportation, and liquid nitrogen/oxygen systems.
What are the main advantages of using JT20 Aerogel?
Key advantages include low dust generation, extremely low thermal conductivity (≤0.017 W/mK), high durability, Class A fire resistance, corrosion inhibition, and a lightweight design that allows for easy, fast installation and pre-insulation.
What is the hydrophobicity and density of the JT20 roll?
The JT20 Aerogel Insulation Roll features a high hydrophobicity rating of ≥98% and has a nominal density of 170 kg/m³.
